All-electric, precise & clean

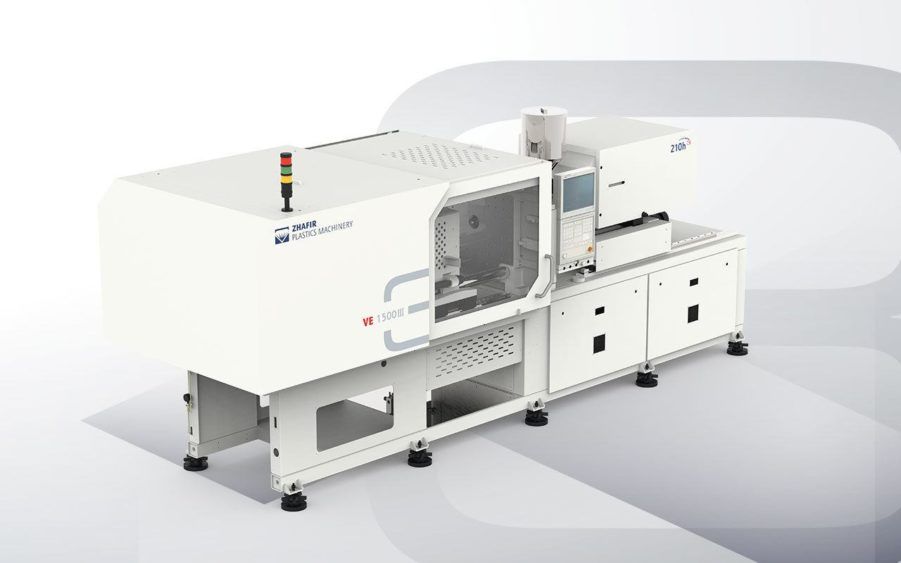

Zhafir Venus Series

The new Venus Series extends your possibility of efficient injection molding more than ever. All-electric premium precision, sustainable, powerful and energy saving.

Clamping Unit

400 – 13,800 kN

Injection Volume

12 – 5,767 cm3

Mold Platen Size

440×440 – 2150×2050 mm

Tiebar Distance

320×320 – 1550×1450 mm

Controller

Sigmatek

Screw Diameter

16 – 120 mm

The new Generation 5

  • Up to 15% space-saving design
  • Our most powerful CPU to date
  • 20% faster mold movement, 400mm/s ejection.
  • Intelligent features, inhouse developed.
  • New controller, user-friendly UI.

The new generation 5

Up to 15% space-saving design

Our most powerful CPU to date

20% faster mold movement, 400mm/s ejection.

Intelligent features, inhouse developed.

New controller, user-friendly UI.

Highlights

Smaller footprint

Enhanced for maximum factory space efficiency, the VE Series boasts a compact footprint by up to 15% smaller than before without compromising performance.

High Performance

Equipped with a fast CPU, the Generation 5 boosts mold speeds and achieves a motorized ejection speed of 400mm/s, enhancing efficiency and productivity.

Faster Mold Movement

The Generation 5 boosts mold movement speeds by around 20%, increasing efficiency and productivity.

Latest Control Technology

The new multi-touch 15 inch screen provides an intuitive and user-friendly UI, enhancing interaction efficiency.

Smart Features as Standard

Our smart machines and services maximize system potential and optimize process and production , reduce costs and boost efficiency for your future-oriented, smart production.
Discover HT·XTEND

Flexible Integration as Standard

Zhafir offers a flexible integration for automated production, compatibility with all global interfaces and open connectivity into MES environmentals.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

“In our production, one of the machines we rely on is the Zhafir Venus series. These all-electric machines impress with their high energy efficiency, highly precise process stability, and consistently reliable performance in daily operations.”

Thorsten Verheyden,

Head of Strategic Procurement / Authorized Representative, WISKA Hoppmann GmbH
